Unbalanced three-phase treatment device
- Three-phase unbalanced treatment: The use of advanced power electronics technology Unbalanced three-phase treatment: with the application of advanced power electronics, the three-phase load power consumption can be redistributed, so that the three-phase current can be balanced on the low-voltage side of the transformer. Reactive power compensation: capacitive & inductive reactive compensation better improves the effective output capacity of the distribution network.
- Harmonic filtering: the main harmonics and conventional (6n±1) sub-harmonics can be effectively eliminated, further improving the safety of distribution system.
- Improvement on transformer load capacity: settle the single-phase overload, and improve the load capacity.
- High safety: mini short-circuiter is provided in the module input for overcurrent protection.
- High power density and small volume: designed module by functional unit is characterized with high power density and small volume.
- Rural areas or villages in the city where the single-phase load greatly changes and three-phase load imbalance is likely to incur.
Product Details
DOWNLOAD
-
Model Description
-

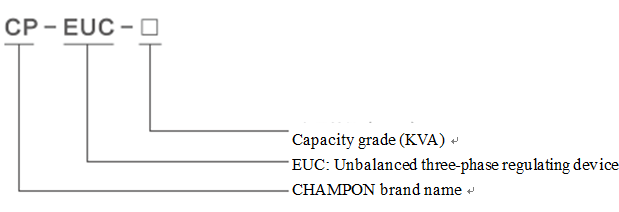

Example: CP-EUC-60 refers to an unbalanced three-phase regulating device of CHAMPON Electric (rated capacity: 60kVA).
-
-
Features
- Three-phase unbalanced treatment: The use of advanced power electronics technology Unbalanced three-phase treatment: with the application of advanced power electronics, the three-phase load power consumption can be redistributed, so that the three-phase current can be balanced on the low-voltage side of the transformer. Reactive power compensation: capacitive & inductive reactive compensation better improves the effective output capacity of the distribution network.
- Harmonic filtering: the main harmonics and conventional (6n±1) sub-harmonics can be effectively eliminated, further improving the safety of distribution system.
- Improvement on transformer load capacity: settle the single-phase overload, and improve the load capacity.
- High safety: mini short-circuiter is provided in the module input for overcurrent protection.
- High power density and small volume: designed module by functional unit is characterized with high power density and small volume.
-
Conditions of Use
- Operating temperature: -10-45℃
- Altitude: <1,500m
-
Technical Parameters
Functional module
Input voltage
320V-460V
Input frequency
47.5Hz-52.5 Hz
Wiring method
3P4L+PE
Functional module capacity
25KVA
30 KVA
35 KVA
Functional module quality
10kg
11 kg
12 kg
Compensation function
Three-phase unbalance, harmonic and reactive compensation
Functional module size
425mm×88mm×400mm
Complete machine
Protection grade
IP54
IP44
Noise
≤60dB
≤65dB
Equipment capacity
60 KVA
90 KVA
120 KVA
140 KVA
Maintenance method
Pluggable functional modules for easy maintenance
